Fleck 5600 SXT Water Softener System

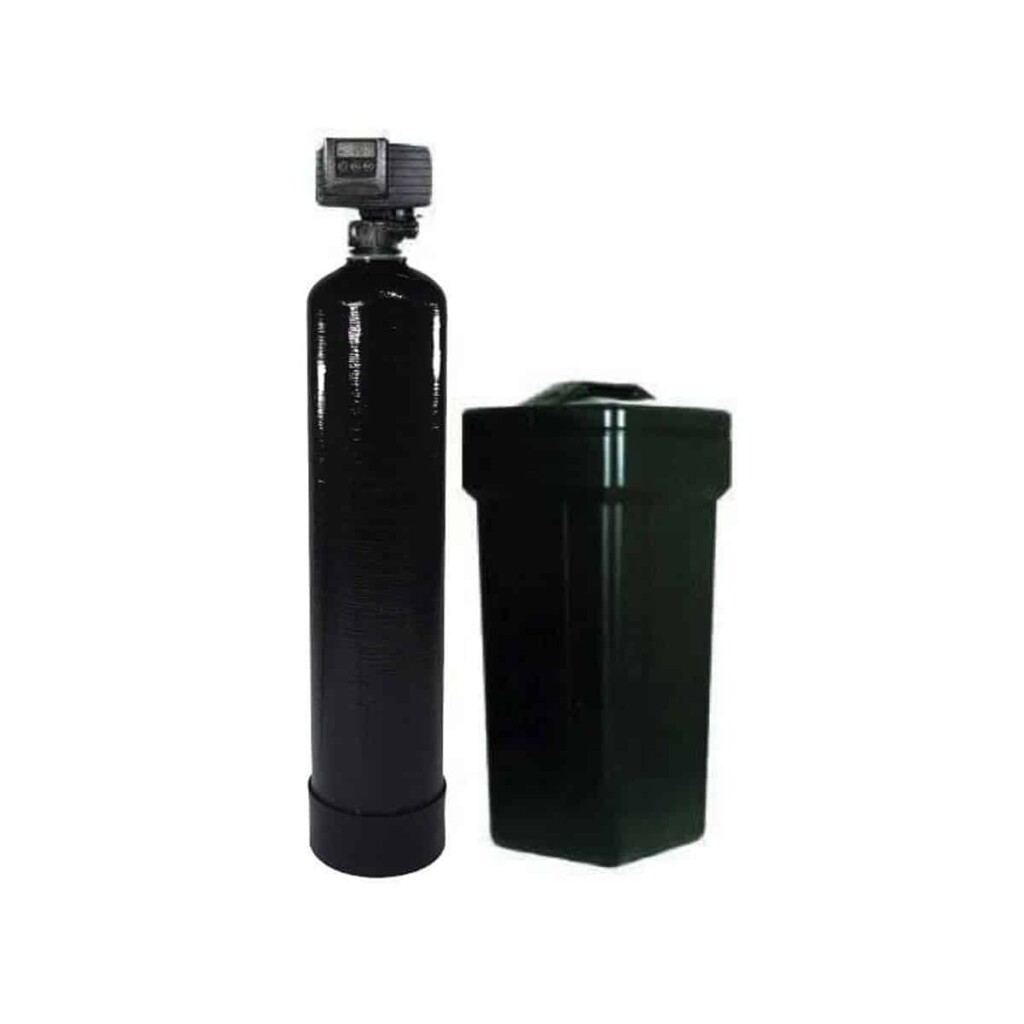

The Fleck 5600 SXT Water Softener is highly rated for efficiency. Robert B. Hill Co sells complete water softener systems with Fleck 5600 SXT control valves. The system includes a fiberglass tank, control valve, brine tank, and resin in one complete package.
Available Sizes
- 26,000 Grains – 7 GPM
- 35,000 Grains – 10 GPM
- 53,000 Grains – 15 GPM
- 70,000 Grains – 20 GPM
- Large LCD display with 48 hours of internal power backup capacitor
- LCD display alternates between time of day, volume remaining or days to regeneration, and tank in service (twin tank systems only)
- Compact turbine meter
- Downflow or upflow regeneration cycles
- Choose from 4 modes of operation: immediate meter regeneration, delayed meter regeneration, delayed time clock regeneration or day of week regeneration
- Continuous flow rate of 20 GPM
- Backwash capacity handles tanks up to 12″ diameter for softener applications, 10″ for filter applications
- Double backwash capability
Valve Specifications
| Valve Material | Fiber Reinforced Polymer |
| Inlet/Outlet | 3/4″, 1″, 1-1/4″ |
| Cycles | 5 |
Flow Rates (50 psi Inlet) – Valve Alone
| Continuous (15 psi drop) | 20 GPM |
| Peak (25 psi drop) | 26 GPM |
| CV (flow at 1 psi drop) | 5.0 |
| Max. Backwash (25 psi drop) | 7 GPM |
Regeneration
| Downflow/Upflow | Both |
| Adjustable Cycles | Yes |
| Time Available | Up to 199 Minutes per Cycle |
Meter Information
| Meter Accuracy Range | 25 – 15 GPM +/- 5% |
| Meter Capacity Range (gal.) | 1 – 60,000 |
Dimensions
| Distributor Pilot | .8125″ or 1.05″ Pipe O.D. |
| Drain Line | 1/2″ NPTF |
| Brine Line | 1600 – 3/8″ |
| Mounting Base | 2-1/2″ – 8 NPSM |
| Height From Top of Tank | 7-1/2″ |
Typical Applications
| Water Softener | 6″ – 12″ Diameter |
| Iron Filter | 6″ – 12″ Diameter |
| Sediment Filter | 6″ – 12″ Diameter |
| Carbon Filter | 6″ – 12″ Diameter |
| Neutralizing Filter | 6″ – 12″ Diameter |
| Injector Brine System | 1600 |
| Electrical Rating | 24 v, 50 Hz, 60 Hz |
| Max. VA | 8.4 |
| Estimated Shipping Weight | Time Clock: 6 lbs Metered Valve: 7 lbs. |
| Pressure | Hydrostatic: 300 psi Working: 20 – 125 psi |
| Temperature | 34 – 110 Degrees F |
