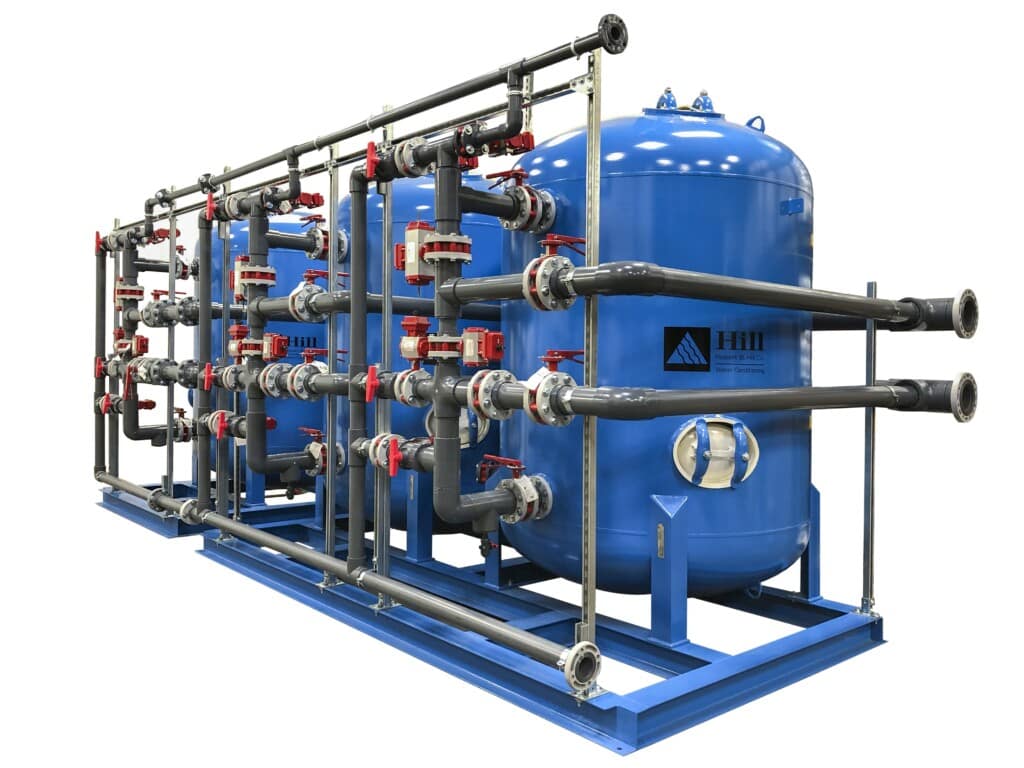

HICAP-XL Series Commercial Water Softener Triplex System

HICAP-XL Series Industrial Water Softener

The HICAP XL Series is Robert B. Hill’s standard offering of high-volume, high-flow water softening systems designed to meet the demanding water treatment needs of industrial, commercial, and municipal applications.

Part of Hill’s full lineup of industrial water softeners. Compare flow rates, configurations and skid-mounted options across every system.

Engineered for reliability and performance, this system can also be customized with single, duplex, and multi-tank arrangements to match specific flow requirements and operational demands, making it an ideal choice for high-demand environments.

  • HICAP-XL-4860
  • HICAP-XL-4872
  • HICAP-XL-5460
  • HICAP-XL-5472
  • HICAP-XL-6060
  • HICAP-XL-6072
  • HICAP-XL-7260
  • HICAP-XL-7272
  • HICAP-XL-8460
  • HICAP-XL-8472
  • HICAP-XL-9660
  • HICAP-XL-9672
  • Skid Mounted Valves
  • Pneumatic Butterfly Valves
  • Paddle Wheel Flowmeter(s) (* Magnetic flow meter(s) become a required option for larger systems)
  • Inlet / Outlet Pressure Transmitters
  • Inlet / Outlet Pressure Gauges
  • Inlet / Outlet Sample Valves
  • Polypropylene Vacuum Breaker / Air Relief Valve(s)
  • NEMA 4/4X Panels
  • PVC Piping
  • Magnetic Flowmeters
  • ASME Code Stamped Vessels
  • NSF-61 Certified
  • Valve Feedback Switches:
  • Drain Flowmeter / Flow Indicator
  • Hard Water By-Pass
  • Hard Water Blend Valve
  • Backwash/Rinse Conductivity
  • Active Online Hardness Analyzer
  • Feed Pressure Relief Valve
  • Electrically Actuated Valves
  • Other Piping Materials: Copper, Stainless, Galv.
Get a Custom Quote
Backwash Flow Rate65 GPM, 80 GPM, 100 GPM, 140 GPM, 190 GPM, 250 GPM
Volume38 ft3, 45 ft3, 47 ft3, 57 ft3, 49 ft3, 71 ft3, 84 ft3, 101 ft3, 115 ft3, 138 ft3, 150 ft3, 181 ft3
Exchange Capacity per Vessel – 10lbs salt per cu ft950 kgr, 1125 kgr, 1175 kgr, 1425 kgr, 1225 kgr, 1775 kgr, 2100 kgr, 2525 kgr, 2875 kgr, 3450 kgr, 3750 kgr, 4525 kgr
Exchange Capacity per Vessel – 15lbs salt per cu ft1140 kgr, 1350 kgr, 1410 kgr, 1710 kgr, 1470 kgr, 2130 kgr, 3030 kgr, 2520 kgr, 3450 kgr, 4140 kgr, 4500 kgr, 5430 kgr
Max Flow185 GPM, 185 GPM, 235 GPM, 235 GPM, 290 GPM, 290 GPM, 420 GPM, 420 GPM, 575 GPM, 575 GPM, 750 GPM, 750 GPM
Min Flow25 GPM, 25 GPM, 35 GPM, 35 GPM, 40 GPM, 40 GPM, 60 GPM, 60 GPM, 80 GPM, 80 GPM, 100 GPM, 100 GPM
Manufacturer Product LineHICAP-XL Series
Pipe Size1″, 1-1/2″, 2″, 3″
Area12.5 ft2, 12.5 ft2, 15.9 ft2, 15.9 ft2, 19.6 ft2, 19.6 ft2, 28.3 ft2, 28.3 ft2, 38.5 ft2, 38.5 ft2, 50.3 ft2, 50.3 ft2
ArraysSimplex, Duplex, Triplex, Quadplex, Larger Arrays Available

HICAP-XL Series Spec Sheets and Manuals

Data Sheet

HICAP-XL Series Technical Data Sheet
