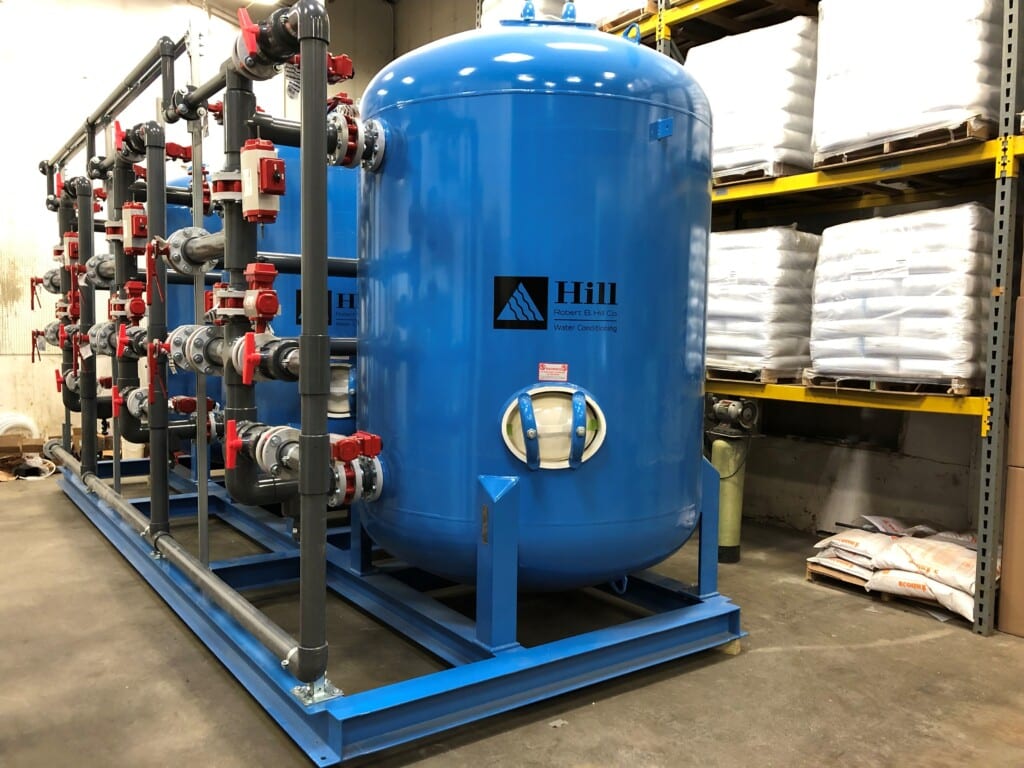

Triplex commercial water softening system

HICAP-F Series Commercial Water Softener

The HICAP-F Series is Robert B. Hill’s offering for low-mid volume systems that require a custom solution for industrial, commercial, and municipal applications using commercially available fiberglass tanks.

Part of Hill’s full lineup of skid-mounted water softeners. Compare flow rates, configurations and skid-mounted options across every system.

Engineered for reliability and performance, this
system can also be customized with single, duplex, and multi-tank arrangements to match specific flow requirements and operational demands.

Model Numbers

HICAP-F-1865
HICAP-F-2162
HICAP-F-2472
HICAP-F-3072
HICAP-F-3672
HICAP-F-4272

Standard Features

NSF-61 Certified Tank Lining
Skid-Mounted Diaphragm Valves
Paddle Wheel or Turbine Flowmeter(s)
Inlet / Outlet Pressure Gauges
Inlet / Outlet Sample Valves
NXT Stager Control
Fully Skidded
PVC Piping

Optional Features

ASME Code Stamped Fiberglass Vessels Switching to an ASME
Hard Water By-Pass
Feed Pressure Relief Valve
PLC & HMI
Other Piping Materials: Copper, Stainless, Galv.

Get a Custom Quote

Types/Specifications

Backwash Flow Rate	11 GPM, 12 GPM, 16 GPM, 25 GPM, 36 GPM,48 GPM
Volume	5 ft3, 6 ft3, 10 ft3, 13 ft3, 20 ft3, 30 ft3
Exchange Capacity per Vessel – 10lbs salt per cu ft	125 kgr, 150 kgr, 250 kgr, 325kgr, 500 kgr, 750 kgr
Exchange Capacity per Vessel – 15lbs salt per cu ft	150 kgr, 180 kgr, 300 kgr, 390 kgr, 600 kgr, 900 kgr
Max Flow	33 GPM, 36 GPM, 47 GPM, 74 GPM, 107 GPM, 144 GPM
Min Flow	5 GPM, 5 GPM, 7 GPM, 10 GPM, 15 GPM, 20 GPM
Manufacturer Product Line	HICAP-F Series
Pipe Size	1″, 1-1/2″, 2″, 3″
Area	2.2 ft2, 2.4 ft2, 3.1 ft2, 4.9 ft2, 7.1 ft2, 9.6 ft2
Arrays	Simplex, Duplex, Triplex, Quadplex, Larger Arrays Available
