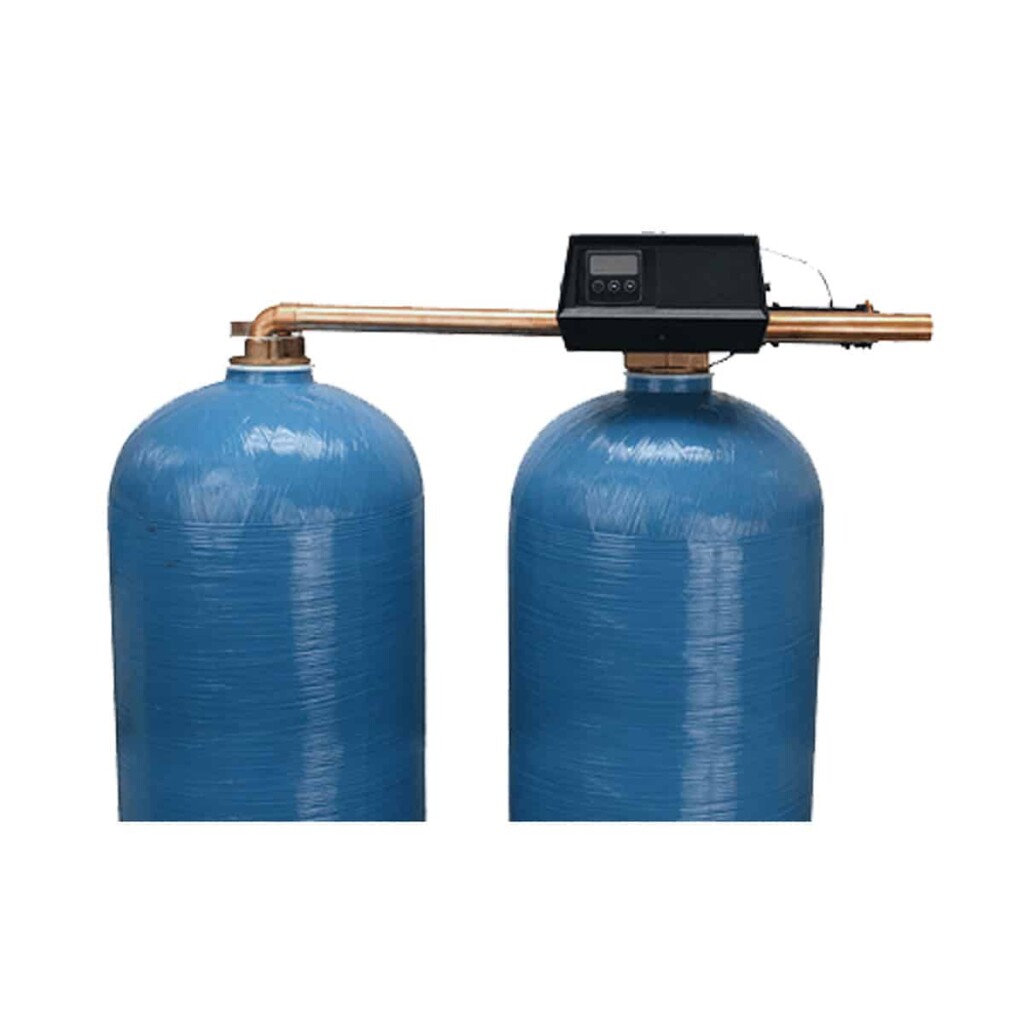

Fleck 9500 Residential Twin Tank Control Valve
The Fleck 9500 twin tank control valve is a rugged residential water softener valve with the advanced SXT digital control and electronic meter. The inlet and outlet is 1.5″ for a continuous flow rate up to 38 GPM.
- Lead-free brass valve body for superior strength and durability
- Continuous service flow rate of 38 GPM with a backwash of 16 GPM
- Backwash capability accommodates softener tanks up to 24″
- Fully adjustable 5-cycle control for efficient and reliable water treatment system
- Time-tested, hydraulically-balanced piston for service and regeneration
- Rugged-built electromechanical timer designed with heavy-duty 3/8″ wide plastic gears
- Salt and water savings by using 100% capacity of the tank in service before switching to the second tank
- Regenerates immediately when needed for continuous soft water
- Regenerates with soft water keeping system clean for optimum operating efficiency and minimum maintenance
Manufacture: Fleck
Model Number: 9500
Valve Size: 1-1/2″ NPTF
Availability: In-Stock
Valve Specifications
| Valve Material | Lead-free brass* |
| Inlet/Outlet | 1-1/2″ NPTF |
| Cycles | 5 |
Flow Rates (50 psi Inlet) – Valve Alone
| Continuous (15 psi drop) | 38 GPM (8.6 m3/h) |
| Peak (25 psi drop) | 49 GPM (11.1 m3/h) |
| CV (flow at 1 psi drop) | 9.8 |
| Max. Backwash (25 psi drop) | 16 GPM (3.6 m3/h) |
Regeneration
| Downflow/Upflow | Downflow only |
| Adjustable Cycles | Yes |
| Time Available | Electromechanical: 82 or 164 minutes SXT: 0 – 199 minutes per cycle XT: 240 minutes per cycle |
Meter Information
| Meter Accuracy Range | 1.5 – 75 GPM |
| Meter Capacity Range (gal.) | Standard: 625 – 10,625 Extended: 3,125 – 53,125 SXT: 1 – 999 900 XT: 1,000 – 9,900,000 |
Dimensions
| Distributor Pilot | 1.9″ O.D. |
| Drain Line | 1″ NPTM |
| Brine Line | 1700 or 1710 1/2″ |
| Mounting Base | 4″ – 8 UN |
| Height From Top of Tank | 7.25″ |
Typical Applications
| Water Softener | 10″-24″ diameter |
| Filter | 8 – 16″ Diameter |
| Electrical Rating | 24/110/220V 50/60 Hz |
| Max. VA | 8.9 |
| Estimated Shipping Weight | 48 lbs |
| Pressure | Hydrostatic: 300 psi Working: 20 – 125 psi |
| Temperature | 34 – 110 Degrees F |
