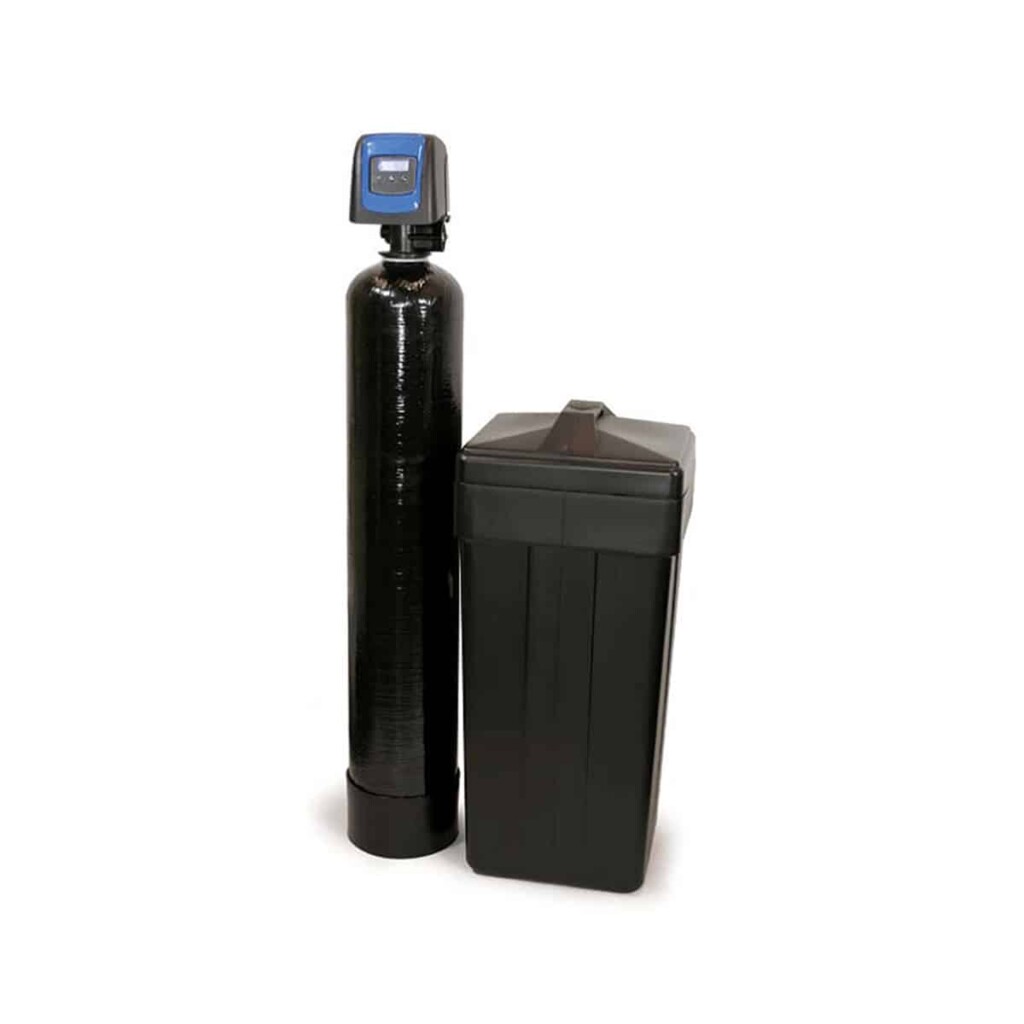

Fleck 5800 SXT Water Softener System
Robert B. Hill Co sells complete Fleck 5800 SXT water softener systems with Fleck 5800 SXT control valves. The system comes complete with a fiberglass tank, control valve, brine tank, and resin in one complete package. For custom packages, contact us by phone for form submission on this site.
Available Sizes
- 8″ x 44″ for 0.75 cubic foot
- 9″ x 48″ for 1.0 cubic foot
- 10″ x 54″ for 1.5 cubic foot
- 12″ x 52″ for 2.0 cubic foot
- 13″ x 52″ for 2.5 cubic foot
- 14″ x 65″ for 3.0 cubic foot
- Fiber-reinforced polymer valve body for superior strength and durability, non-corrosive, and UV-resistant
- Continuous service flow rate of 21 GPM with a backwash of 17 GPM
- Backwash capability accommodates softener tanks up to 16″ and filters up to 16″ in diameter
- Fully adjustable 3- or 5-cycle control for efficient and reliable water treatment system
- Time-tested, hydraulically-balanced piston for service and regeneration
- Optical sensor for precision cycle positioning
- Soft water refill for a cleaner brine tank
- Designed with double backwash for reduced hardness leakage
- Diagnostics for historical valve performance
- Programming stored in memory and will not be lost due to power outages
Valve Specifications
| Valve Material | Fiber Reinforced Polymer |
| Inlet/Outlet | 3/4″ or 1″ NPT/BSP/ Sweat |
| Cycles | 5 |
Flow Rates (50 psi Inlet) – Valve Alone
| Continuous (15 psi drop) | 21 GPM |
| Peak (25 psi drop) | 27 GPM |
| CV (flow at 1 psi drop) | 5.4 |
| Max. Backwash (25 psi drop) | 17 GPM |
Regeneration
| Downflow/Upflow | Both |
| Adjustable Cycles | Yes |
| Time Available | Up to 199 Minutes per Cycle |
Meter Information
| Meter Accuracy Range | 25 – 15 GPM +/- 5% |
| Meter Capacity Range (gal.) | 1 – 999,900 gal |
Dimensions
| Distributor Pilot | 1.05″ O.D. (26.7 mm) |
| Drain Line | 1/2″ NPTF Quick-Connect |
| Brine Line | 1600 – 3/8″ |
| Mounting Base | 2.5″– 8 NPSM |
| Height From Top of Tank | 9″ (228 mm) |
Typical Applications
| Water Softener | 6 – 16″ Diameter |
| Filter | 8 – 16″ Diameter |
| Electrical Rating | 12 Volts DC |
| Max. VA | 8.4 |
| Estimated Shipping Weight | Time Clock: 6 lbs Metered Valve: 7 lbs. |
| Pressure | Hydrostatic: 300 psi Working: 20 – 125 psi |
| Temperature | 34 – 110 Degrees F |
