ELC Series – 750 to 1,500 GPD Capacity Reverse Osmosis Systems
ELC – Series Reverse Osmosis Systems are manufactured for light commercial applications and feature a compact space–saving design. The versatile design allows for either wall–mounted or freestanding operation. The ELC – Series Systems come preassembled and ready for immediate online service with minimal set up and simple utility connections.
ELC – Series Reverse Osmosis Systems have been engineered for capacities of 750 or 1,500 gallons per day and feature a Low Lead Brass Rotary Vane Pump designed for enhanced performance.
- White Powder Coated Steel Bracket
- 2.5” x 20” 5 – Micron Sediment Pre–Filter
- 2.5” x 20” 10 – Micron Carbon Block Pre–Filter (on ELC – 750)
- 20” Slim Line Cartridge Housings
- Low Lead Brass Rotary Vane High Pressure Pump
- ODP High Efficiency Carbonator Motor

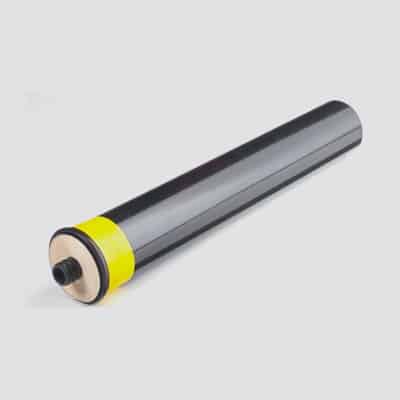

- HF5 – Series Ultra Low Energy Membrane Elements
- Permeate Flow Meter Concentrate Flow Meter with SS Integrated Needle Valve
- Concentrate Recycle Flow Meter with SS Integrated Needle Valve
- Feed Solenoid Valve 0 – 300 psi Pump Pressure Gauge
- 0 – 100 psi Post–Filter Pressure Gauge
- 0 – 100 psi Permeate Pressure Gauge
- Push/Pull Fittings with Locking Safety Clips
- Low Pressure Switch for Pump Protection
- Permeate High Pressure Switch
- DM – 2 Dual TDS Meter
- 20” Floor Stand
| Nominal Capacity GPD | Model Number | Part Number | Membranes No. & Size |
| 750 | ELC-750 | 7370448 | 1 – 3 x 18 |
| 1,500 | ELC-1500 | 7370456 | 2 – 3 x 18 |
