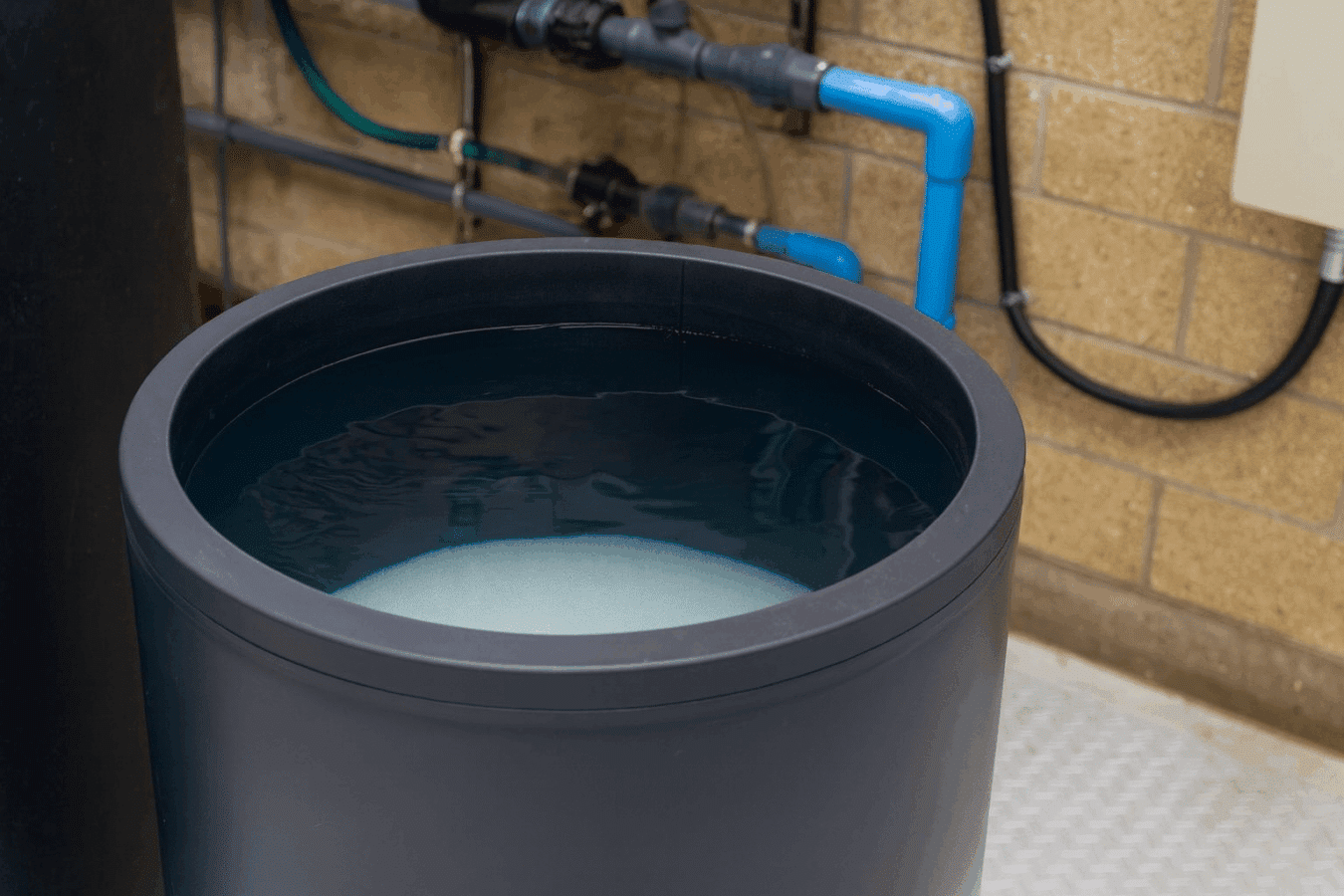

Why Is My Water Softener Full of Water? Commercial Troubleshooting Guide

A water softener full of water can stall production, spike utility bills, and create messy brine spills right when you need consistent quality water the most.

If you operate or maintain a commercial water softener, this guide walks you through why brine tanks overfill, how to fix the issue step by step, and what to change so it does not happen again.

Before we dive in, here is important context about the stakes:

Regeneration uses water. The EPA’s WaterSense program notes that softener regeneration can use 25 gallons per day or up to 10,000 gallons per year per softener, so inefficiencies add up quickly. Don’t let them get the best of you. Let’s solve the problem now.

What “Full of Water” Means in Commercial Systems

Commercial water softeners typically have two or more mineral tanks plus a separate brine tank.

Under normal conditions, the brine tank holds a controlled level of water beneath the salt bed. During “brine fill,” the control valve meters in a precise volume of water to dissolve salt for the next regeneration. After “brine draw,” the tank level should return near the baseline. If you see the brine tank near the rim or not dropping between cycles, you likely have a fault.

To diagnose accurately, it helps to confirm which stage the system last attempted and whether or not it completed the cycle without interruption.

First Pass Checks to Keep You Safe and Online

Start with quick checks that protect people and equipment before you open valves or pull injectors. Because each of these checks has a purpose, do them in this order for the best signal.

1. Verify the system is in service and not stuck mid-regeneration.
2. Confirm inlet water, drain, and brine line isolation valves are open.
3. Look for obvious kinks or blockages on the drain and brine lines.
4. Check the overflow fitting and hose on the brine tank to make sure it is not plugged.
5. Review the controller display for recent alarms, power loss, or skipped steps.
6. If you have a duplex or triplex system, note which tank is in service and which is on standby.

The Most Common Causes of a Brine Tank Full of Water

Once the system is stable, zero in on the root cause. The items below represent the vast majority of brine overfill cases we see in the field.

1) Salt Bridge or Salt Mushing

What it is:

• A salt bridge is a hard crust that forms above the water line, creating a void underneath.
• Salt mushing is a sludge of recrystallized salt that plugs the brine well or grid plate.

Symptoms: The controller reports normal cycles, but the brine tank still holds high water because brine cannot form or draw correctly.

Fix: Tap the surface with a non-metal tool to break a bridge. For mushing, scoop out the sludge and vacuum the bottom. Refill with clean, screened solar salt or pellet salt. Avoid rock salt in commercial systems.

2) Kinked, Frozen, or Plugged Drain Line

What it is: The drain line carries spent brine and backwash water to waste. Any restriction prevents proper brine draw and rinse.

Symptoms: Slow drain during backwash or brine draw, high brine level that never drops, or overflow through the tank’s emergency port.

Fix: Straighten kinks, clear ice, and purge debris. Inspect the drain line flow control (DLFC) for fouling. Make sure the run, air gaps, and standpipe heights match the manufacturer’s spec.

3) Clogged Injector/Venturi or Brine Line Flow Control

What it is: The injector uses differential pressure to pull brine. Iron, silt, or scale can partially block the orifice or screen.

Symptoms: Brine draw step times out or takes much longer than normal. Brine level barely moves.

Fix: Isolate, depressurize, remove the injector and screen, and clean with manufacturer-approved acid or detergent. Replace worn O-rings. Confirm you are using the correct injector size for your flow rates and resin volume.

4) Stuck or Mis-Set Brine Float Assembly

What it is: The brine safety float limits the maximum water level. If it sticks high or is mis-set, the tank can appear full.

Symptoms: Water rises to the float height every cycle regardless of demand. Light tapping temporarily restores motion.

Fix: Clean the float guide tube, check for salt crust, make sure the air check seats properly, and recalibrate float height. Replace cracked or waterlogged floats.

5) Control Valve Programming Errors

What it is: A well-meaning parameter change can overfill the tank.

Symptoms: Brine fill time too long, wrong salt dosage, incorrect resin capacity, time-clock regeneration on a heavy use schedule, or wrong brine refill timing in alternating systems.

Fix: For demand-initiated regeneration, confirm meter factors and hardness settings. For time-clock systems, set realistic intervals or convert to demand control. Align brine fill time with the required salt dose and your brine concentration.

6) Internal Leaks in the Control Valve

What it is: Worn seals, spacers, or pistons allow unintended flow during service or regen.

Symptoms: Continuous trickle to drain, unpredictable tank levels, or frequent regenerations without meter counts.

Fix: Rebuild the valve with the correct kit, then rerun a manual regen to verify each step’s flow and timing.

7) Interrupted Regeneration or Power Loss

What it is: A power blip or emergency shutdown during brine draw can strand water in the tank.

Symptoms: Time stamps or alarm log show an event during brine draw or slow rinse. Tank remains high afterward.

Fix: Restore power, clear alarms, and run a full manual regeneration to reset positions and re-establish normal levels.

8) Poor Salt Quality or Storage Conditions

What it is: High-fines salt or high humidity encourages mushing and bridges.

Symptoms: Frequent cleaning required, cloudy brine, and recurring draw issues.

Fix: Use high-purity pellet or solar salt in sealed storage. Keep the brine room dry and off the slab with pallets or a grid.

Learn how to clean your resin tank.

Step-by-Step: How to Fix a Commercial Brine Tank That Is Full of Water

You will move faster if you follow a consistent pattern. Here is a proven sequence our field techs use:

1. Put the unit in bypass and depressurize the brine tank. This keeps your work area safe and prevents accidental overflow while you troubleshoot.

2. Open the brine well and inspect the float assembly. Move the float by hand, check the air check, and clean any crust on the guide.

3. Check the injector and screen. Remove, soak, and rinse as recommended. Verify injector size matches the valve’s spec for your resin bed size.

4. Inspect and clear the drain path. Confirm the DLFC is correctly sized and clean. Verify the drain line is unkinked, pitched properly, and discharging with an appropriate air gap.

5. Break bridges and remove mushing. Use a plastic or fiberglass rod to break crusts. Wet-vac fines and sludge from the bottom.

6. Verify programming. Confirm hardness, capacity, brine fill time, salt dose per regen, meter pulse, and valve type. Correct any out-of-spec entries.

7. Run a manual regeneration. Watch each step. Time brine draw and measure actual flow to confirm draw and refill rates match the manual.

8. Return to service and recheck in 24 hours. Confirm that the tank level returned to baseline and the system metered usage as expected.


Commercial-Only Considerations You Should Not Skip

Commercial systems add complexity that can mask the real problem. Keep these extra checks in mind so you do not chase the wrong fault:

Duplex and Triplex Alternating Systems

If one tank constantly regenerates while the other never hits capacity, mis-wired meters or swapped inlets/outlets can create phantom demand and leave the brine tank overused. Confirm flow direction, valve orientations, and meter cables.

Learn more about dual tank water softeners.

Brine Reclaim or External Brine Tanks

Brine reclaim saves salt and water but adds check valves, additional controls, and programming steps. A failing reclaim valve or bad timing can refill the tank out of sequence. Verify reclaim setpoints and valve actuation.

High Iron or Manganese Loads

Iron-bearing water fouls injectors and screens quickly. Add pretreatment or adjust backwash rates and intervals if iron carryover is visible. Consider periodic low-pH cleaning of the resin and injector path per the manufacturer.

Safety and Spill Containment

Large brine tanks should have secondary containment and monitored floor drains. Install float switches or leak sensors tied to your building automation system so you receive alerts before you have a spill.

Prevent Overfilled Brine Tanks From Coming Back

Fixing today’s problem is step one. Locking in practices that prevent repeats will save time and operating costs.

Program for Demand, Not the Calendar

Time-clock regeneration is simple but often wasteful in commercial settings.

Demand-initiated control matches cycles to actual water use and hardness. This reduces unnecessary brine make and lowers the chance of a tank that looks abnormally full between cycles. It also helps reduce overall water use from regeneration.

The EPA WaterSense program highlights how equipment choices and operating practices can swing water use dramatically across facilities. For example, single-pass cooling can use about 40 times more water than a properly operated cooling tower at 5 cycles of concentration, which shows why monitoring and efficient control matter for every process water system you manage. See the overview and figures in WaterSense Best Management Practices.

Use Quality Salt and Stable Storage

Specify high-purity pellets or solar salt for commercial applications. Keep pallets wrapped, inside, and off the floor. Keep the brine room dry with ventilation or dehumidification. Mark a maximum fill line and train staff not to top off above it.

Add Simple Instrumentation

A brine level switch in the well that alarms on high level will warn you before an overflow. A flow sensor on the drain line will reveal slow or stalled brine draw. Tie both to email or BAS alerts so the right person can respond.

Create a Short, Repeatable Preventive Maintenance Routine

A small amount of preventive maintenance prevents most overfill calls. To make this easy for rotating teams, write it down and stick to a cadence.

• Weekly: Walk past the brine tank, listen for trickle to drain, and confirm level is normal.

• Monthly: Pop the brine well cap, move the float by hand, and check for crust.

• Quarterly: Pull and clean the injector and screen, verify DLFC size and condition, and test the high-level alarm.

• Semiannually: Review controller programming against current hardness, usage, and resin capacity.

Learn how to service your commercial water softener.

Keep Your Controller History Clean

If your controller logs cycles and alarms, export those monthly. Trend brine draw time, refill volume, and meter counts. If draw time creeps up, plan a cleaning before you have a mid-shift overflow.

Train for “First Five Minutes”

Give your team a laminated card posted at the system that lists the first 5 things to check. In most facilities, your operators can clear a kinked drain line or a sticky float quickly if they know where to look.

When to Call in a Pro for a Water Softener Full of Water

Call for help if you see any of the following:

• Repeated overfills after a correct cleaning and injector service
• Controller errors you cannot clear, or unknown passwords that block programming
• Internal control valve leaks that require a full rebuild
• Duplex or triplex systems with metering or alternation faults

At Robert B. Hill Co., we have over 65 years of experience building, servicing, and optimizing commercial and industrial softening systems every day.

If your water softener full of water issue is slowing down your operations, reach out for a free consultation.

We will help you pinpoint the cause, recover capacity, and set up a maintenance plan that keeps your commercial water softener running efficiently.
